Classic North Arrow Style (Minimal)

A collection of style constructors that return `grid` grobs for use with `annotation_compass(style = ...)`. These styles provide different visual appearances for a compass or north arrow drawn as an annotation.

Usage

north_arrow_classic(
  fill = c("white", "black"),
  line_col = "black",
  line_width = 2,
  text_col = "black",
  text_size = 12,
  text_face = "plain",
  text_family = ""
)

compass_sinan(
  line_col = "black",
  square_pad = 0.1,
  ring_outer = 0.35,
  ring_ratio = 0.65,
  labels = c("N", "E", "S", "W"),
  text_size = 12,
  text_face = "plain",
  text_family = "",
  text_col = "black",
  label_offset = 0.05,
  spoon_fill = "black",
  spoon_col = "black",
  spoon_scale = 0.8,
  inner_fill = "lightgrey",
  square_width = 2,
  outer_width = 2,
  inner_width = 1,
  spoon_width = 1
)

north_arrow_classic(
  fill = c("white", "black"),
  line_col = "black",
  line_width = 2,
  text_col = "black",
  text_size = 12,
  text_face = "plain",
  text_family = ""
)

north_arrow_solid(
  fill = "black",
  line_col = "black",
  line_width = 1,
  text_col = "black",
  text_size = 12,
  text_face = "plain",
  text_family = ""
)

compass_rose_simple(
  fill = c("white", "black"),
  line_col = "black",
  line_width = 1,
  sharpness = 0.7,
  text_col = "black",
  text_size = 12,
  text_face = "plain",
  text_family = ""
)

compass_rose_classic(
  fill = c("white", "black"),
  line_col = "black",
  line_width = 1.5,
  sharpness = 0.6,
  text_col = "black",
  text_size = 12,
  text_face = "plain",
  text_family = ""
)

compass_rose_circle(
  fill = "white",
  line_col = "black",
  line_width = 3,
  text_col = "black",
  text_size = 12,
  text_face = "plain",
  text_family = ""
)

compass_guiding_fish(
  size = 1,
  ring_ratio = 0.2,
  ring_width = 2,
  n_seg = 16,
  fish_col = "black",
  fish_shift = -0.03,
  text_col = "black",
  text_size = 12,
  text_face = "plain",
  text_family = ""
)

compass_sinan(
  line_col = "black",
  square_pad = 0.1,
  ring_outer = 0.35,
  ring_ratio = 0.65,
  labels = c("N", "E", "S", "W"),
  text_size = 12,
  text_face = "plain",
  text_family = "",
  text_col = "black",
  label_offset = 0.05,
  spoon_fill = "black",
  spoon_col = "black",
  spoon_scale = 0.8,
  inner_fill = "lightgrey",
  square_width = 2,
  outer_width = 2,
  inner_width = 1,
  spoon_width = 1
)

Arguments

fill

Fill color(s) for polygons. Vectorized for alternating fills in some styles.

line_col

Stroke color for outlines.

line_width

Stroke width for outlines (numeric).

text_col

Text color for labels.

text_size

Text font size for labels (points).

text_face

Text font face (e.g., "plain", "bold").

text_family

Text font family.

square_pad

Padding around the outer square (Sinan style), fraction of box side.

ring_outer

Outer ring radius (Sinan style), expressed in npc units (0..1).

ring_ratio

Inner/outer radius ratio for ringed styles (0 < value < 1).

labels

Character vector of cardinal labels, usually `c("N","E","S","W")`.

label_offset

Label offset from the square edges (Sinan style), npc units.

spoon_fill

Fill color for spoon glyph (Sinan style).

spoon_col

Stroke color for spoon glyph (Sinan style).

spoon_scale

Scale factor for spoon glyph (Sinan style).

inner_fill

Fill color for inner disk (Sinan style).

square_width, outer_width, inner_width, spoon_width

Stroke widths for respective elements in Sinan style.

sharpness

Controls star-point sharpness in rose styles, numeric in [0, 1].

size

Global size scaler (used by some styles).

ring_width

Stroke width of ring outlines (numeric).

n_seg

Number of ring segments (integer).

fish_col

Fill color for fish shape (guiding fish style).

fish_shift

Vertical shift for fish shape (guiding fish style).

Value

A `grid` graphical object (grob).

Details

Exported constructors documented under this topic:

• north_arrow_classic()

• north_arrow_solid()

• compass_rose_simple()

• compass_rose_classic()

• compass_rose_circle()

• compass_guiding_fish()

• compass_sinan()

Each constructor returns a grob ready to be passed to annotation_compass(style = ...). All styles include an "N" (or cardinal labels) to indicate north.

See also

[annotation_compass] for adding the compass to a ggplot.

Examples

# Standalone preview

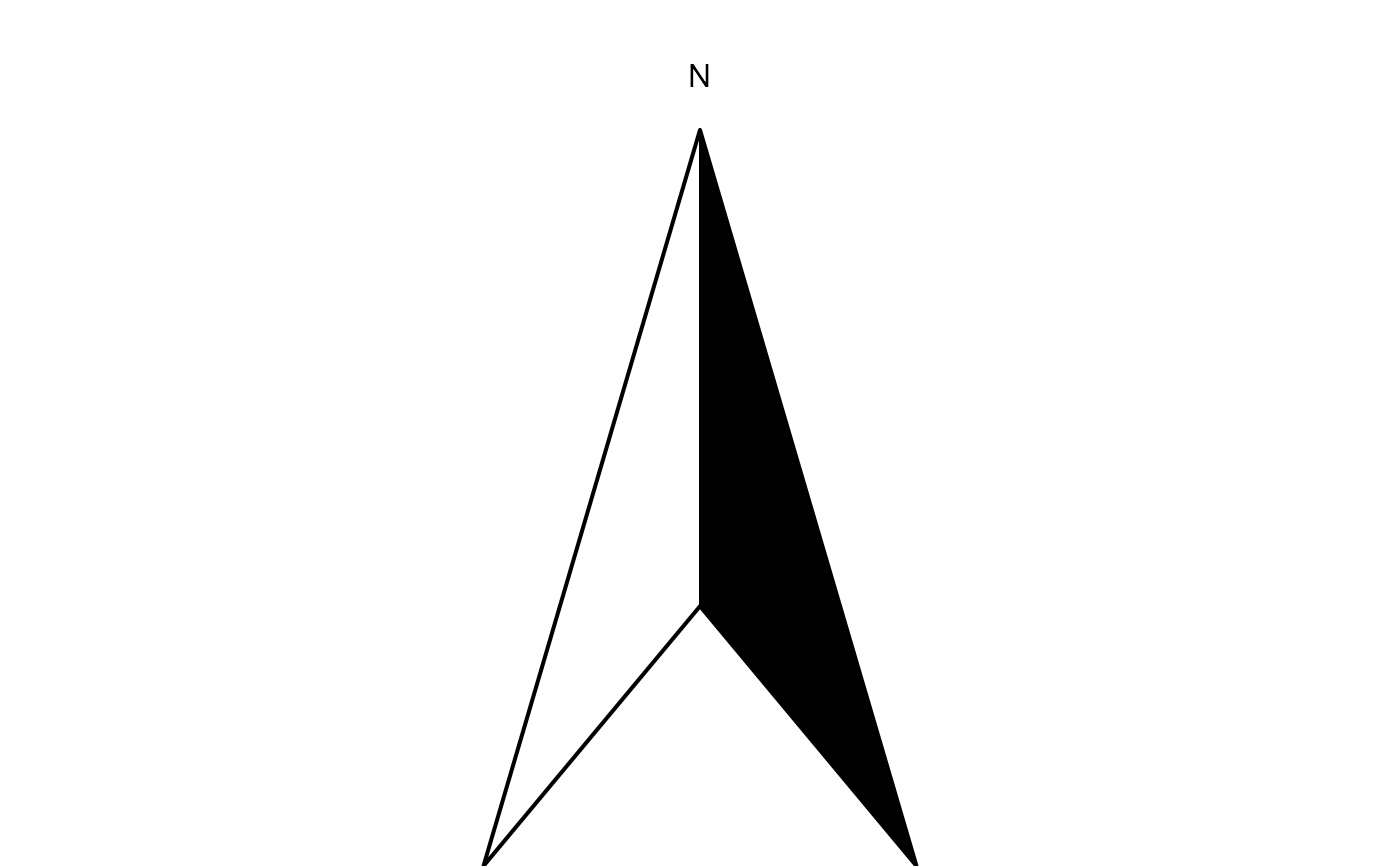

grid::grid.newpage(); grid::grid.draw(north_arrow_classic())

grid::grid.newpage(); grid::grid.draw(north_arrow_solid())

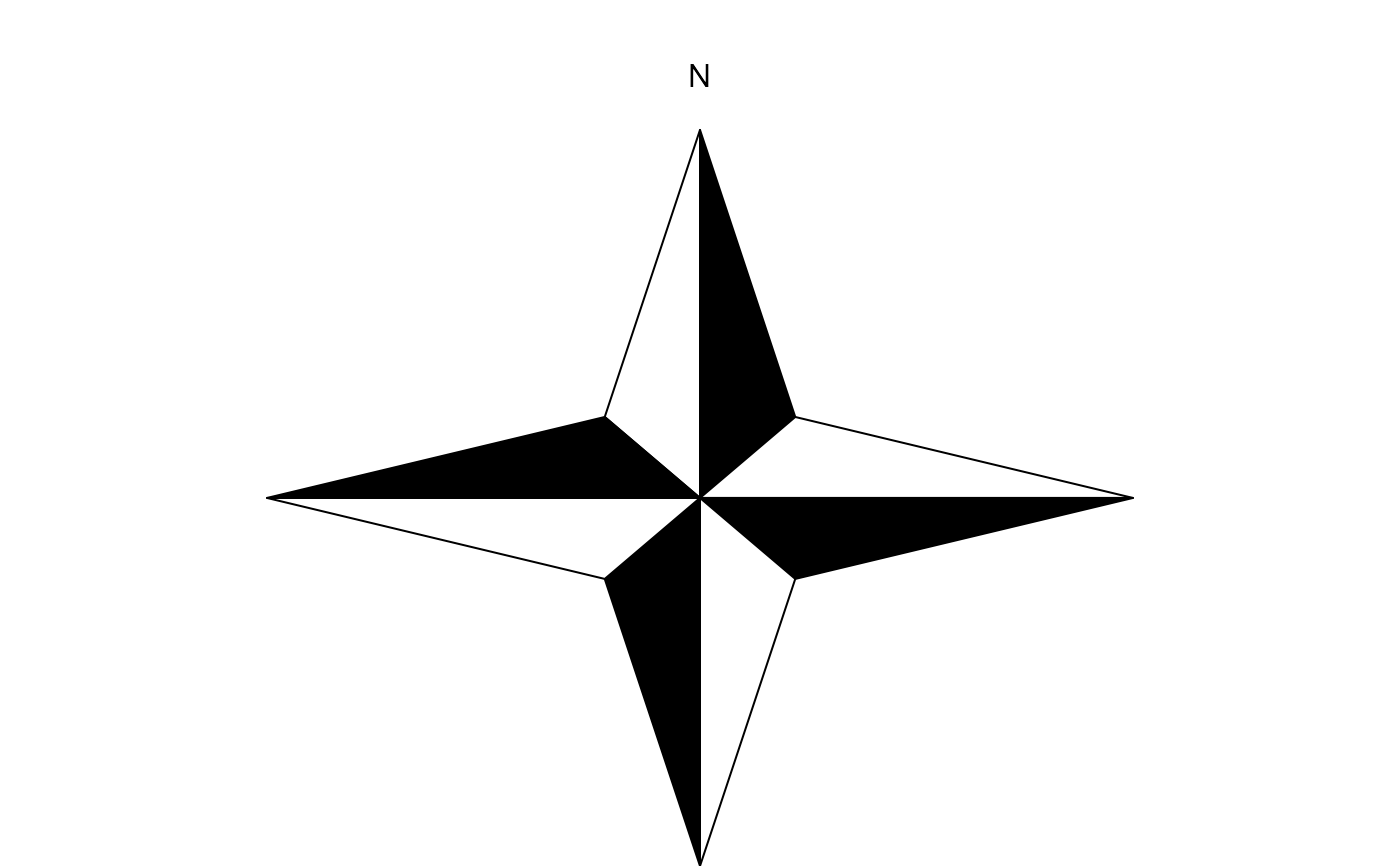

grid::grid.newpage(); grid::grid.draw(compass_rose_simple())

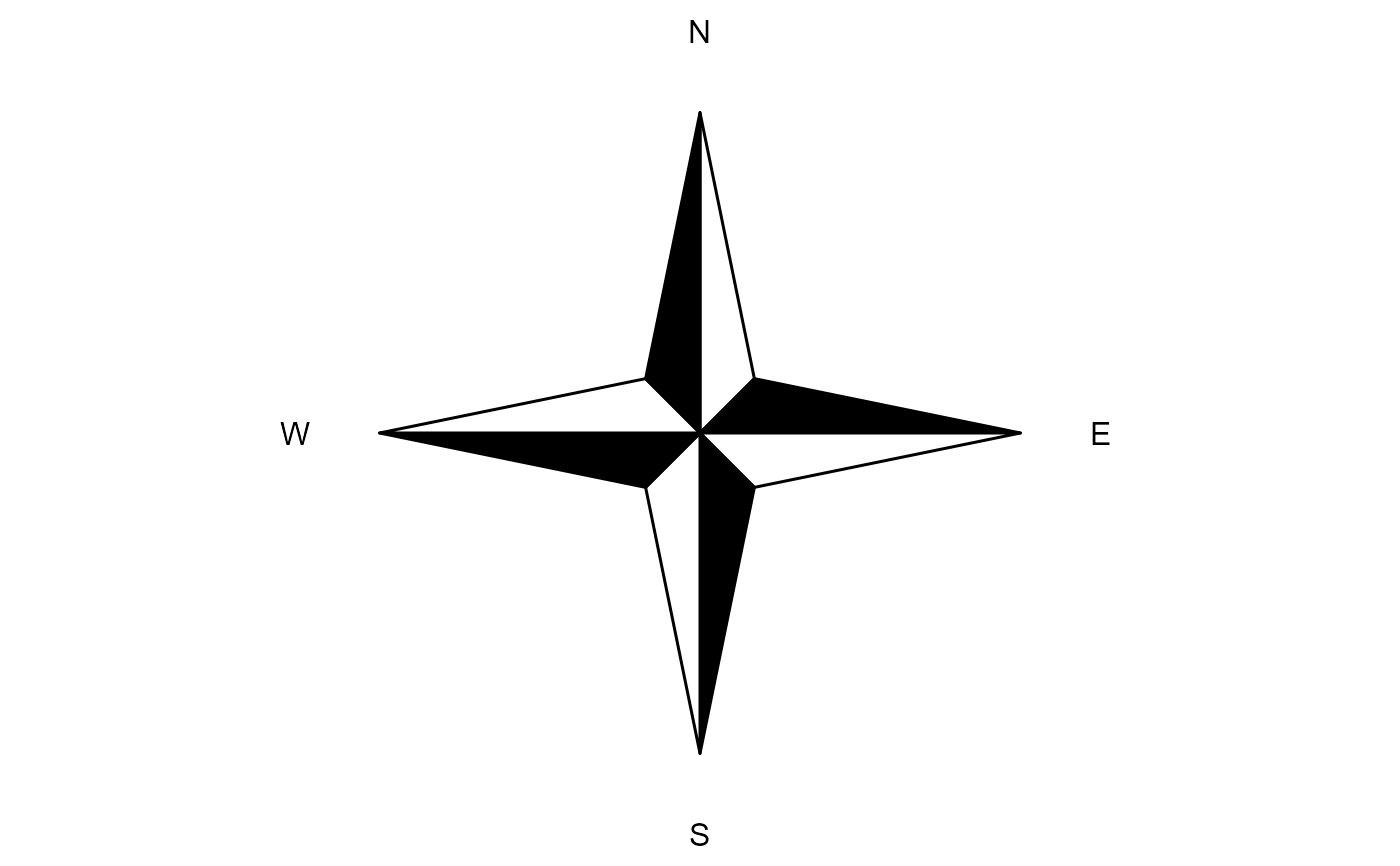

grid::grid.newpage(); grid::grid.draw(compass_rose_classic())

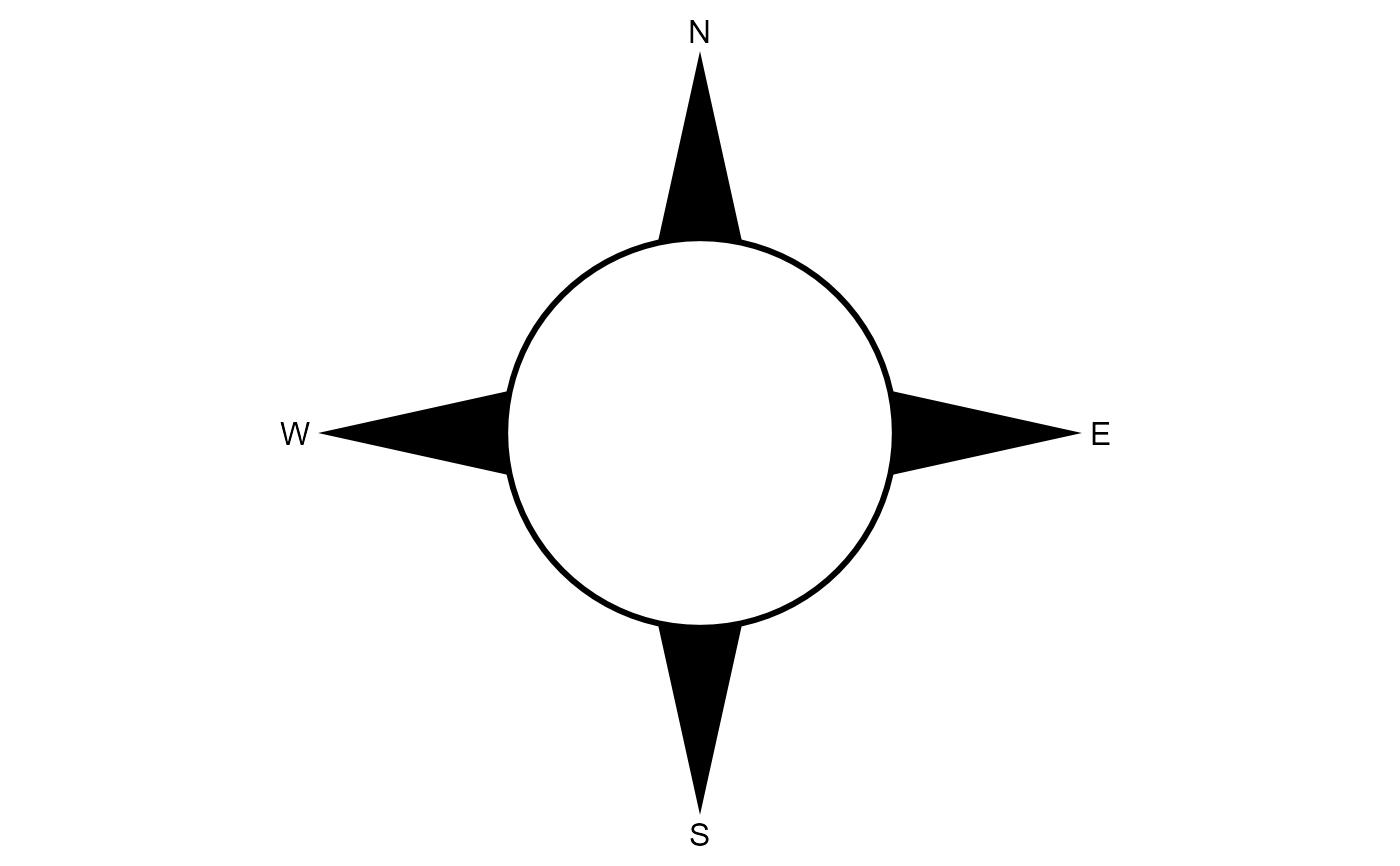

grid::grid.newpage(); grid::grid.draw(compass_rose_circle())

grid::grid.newpage(); grid::grid.draw(compass_guiding_fish())

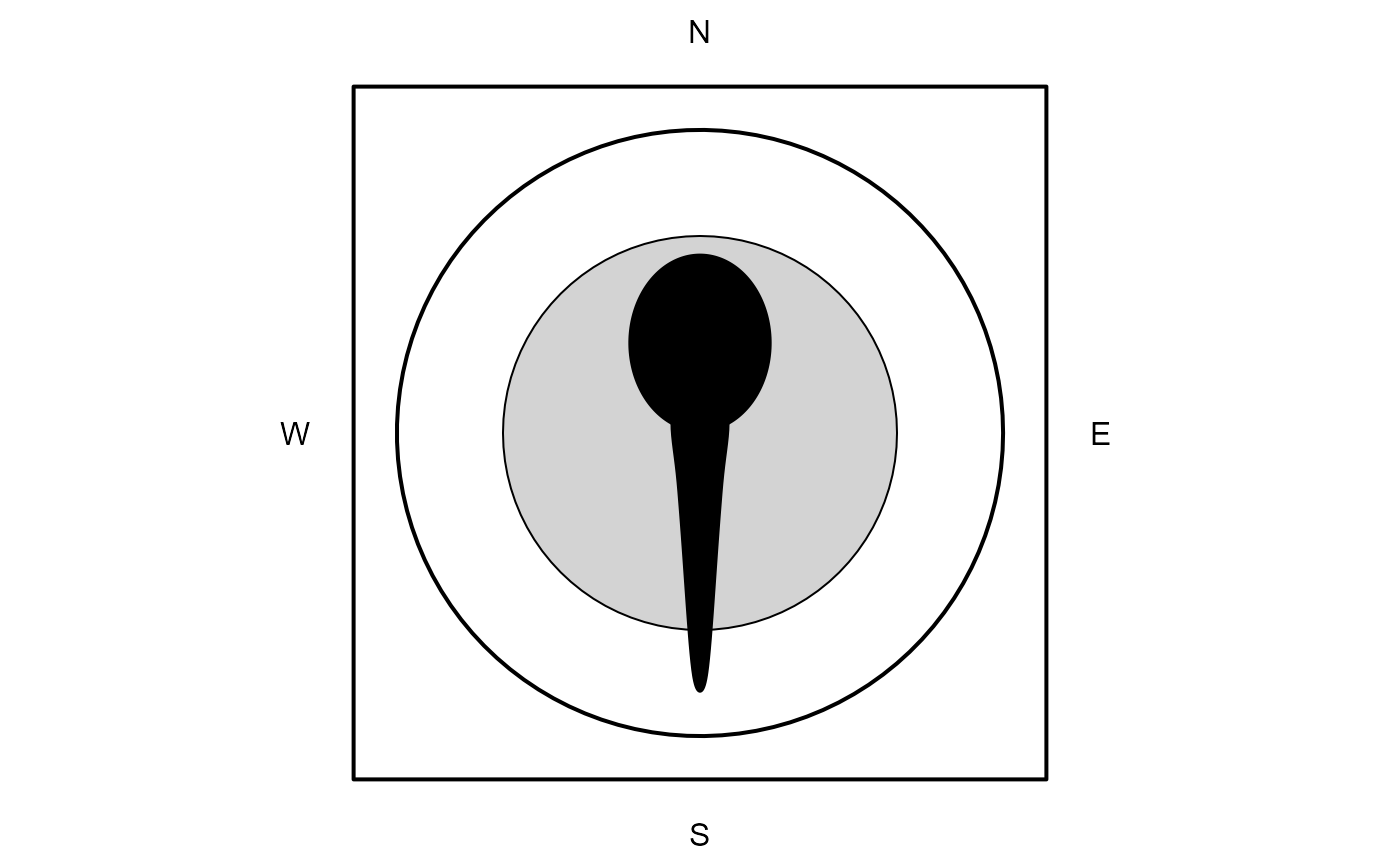

grid::grid.newpage(); grid::grid.draw(compass_sinan())


# Use in ggplot
# \donttest{
if (requireNamespace("ggplot2", quietly = TRUE) &&
    requireNamespace("sf", quietly = TRUE)) {
  nc <- sf::st_read(system.file("shape/nc.shp", package = "sf"), quiet = TRUE)
  p <- ggplot2::ggplot() +
    ggplot2::geom_sf(data = nc, fill = "grey90") +
    ggplot2::theme_minimal()

  p + annotation_compass(location = "tr", style = north_arrow_classic())
  p + annotation_compass(location = "bl", style = compass_sinan())
}

# }
